APP monitoring Real-time monitoring and Remote upgrade
ATOM HS
New generation high-voltage stackable battery system,suitable for high power residential energy storage application.
Category:
Home Energy Storage Battery
Keywords:
high energy lithium battery oem
replacement for lithium battery oem
new high power lithium battery
china lithium battery
IP65 Indoor and outdoor installation options
C3+ class Anti-corrosion battery housing
Cycle Life Up to 6000+ cycles
High safety Equipped with advanced BMS , with voltage, current, power, temperature, shunt trip and other protection functions
High power Each battery cluster can deliver power up to 40KW Max
Product Description
Product Parameters
PDF Download
Product video
Product Q&A
Atom series high voltage stacking products, using 5.12kwh lithium iron phosphate battery module, support 15.36~40.96 capacity free choice, high flexibility of choice space, to meet the needs of users in more scenarios of electricity, and equipped with wifi module, with APP monitoring and remote upgrade function.
ATOM HS: ATOM HS is a high-performance lithium battery that is suitable for applications that require rapid charging and discharging. It might be used in power-intensive devices or those that need to operate at high speeds. Its key advantage could be its quick response and high power delivery.
| Basic Parameters | 3-Modules | 4-Modules5-Modules6-Modules7-Modules8-Modules | ||||||||||||||||||||||||||||||||||||
| Model | ATOM HS-15.36 | ATOM HS-20.48 | ATOM HS-25.6 | ATOM HS-30.72 | ATOM HS-35.84 | ATOM HS-40.96 | ||||||||||||||||||||||||||||||||
| Battery type | LiFePO4 | |||||||||||||||||||||||||||||||||||||
| Nominal voltage | 153.6V | 204.8V | 256.0V | 307.2V | 358.4V | 409.6V | ||||||||||||||||||||||||||||||||
| Nominal capacity | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh | 35.84kWh | 40.96kWh | ||||||||||||||||||||||||||||||||
| Max charge and discharge current | 100A | |||||||||||||||||||||||||||||||||||||
| Max charge and discharge power | 15.36kW | 20.48kW | 25.6kW | 30.72kW | 35.84kW | 40.96kWh | ||||||||||||||||||||||||||||||||
| Communication | CAN/RS485/WIFI | |||||||||||||||||||||||||||||||||||||
| Weight | 182Kg | 232Kg | 282Kg | 332Kg | 382Kg | 432Kg | ||||||||||||||||||||||||||||||||
| Dimensions（ L*W） | 590*405mm | |||||||||||||||||||||||||||||||||||||
| Dimensions（ H） | 675mm | 835mm | 995mm | 1155mm | 1315mm | 1475mm | ||||||||||||||||||||||||||||||||
| Working temeprature range | charge0~45℃ , discharge-20~55℃ | |||||||||||||||||||||||||||||||||||||
| Efficiency | ≥97% | |||||||||||||||||||||||||||||||||||||
| Cycle life | 6000cycles | |||||||||||||||||||||||||||||||||||||
| Designed lifespan | ≥10 years | |||||||||||||||||||||||||||||||||||||
| Shell protection grade | IP65 | |||||||||||||||||||||||||||||||||||||
| Shell protection grade | C3+ class anti-corrosion | |||||||||||||||||||||||||||||||||||||
| Auxiliary heating function | Optional | |||||||||||||||||||||||||||||||||||||
| Parallelconnection | suggest ≤ 4 clusters | |||||||||||||||||||||||||||||||||||||
| Installation | Floor standing | |||||||||||||||||||||||||||||||||||||
| Compatible inverter | Afore ,Growatt,Solis , DEYE ,Pylon,Megarevo,INVT, and customization | |||||||||||||||||||||||||||||||||||||
| Certification | CB-IEC62619,CE,UN38.3 | |||||||||||||||||||||||||||||||||||||
2024/05/13
ATOM HS
Online Message
If you are interested in our products, please leave your email and we will contact you as soon as possible. Thank you!
Recommended Products
The 3.5KW/3.5kwh mobile energy storage trolley integrates energy storage batteries and hybrid inverters, which is equivalent to a small mobile power station; as a distributed energy storage power source.
Home Energy Storage Battery offers a reliable and efficient power solution for your home. In the renewable energy industry, it plays a crucial role.

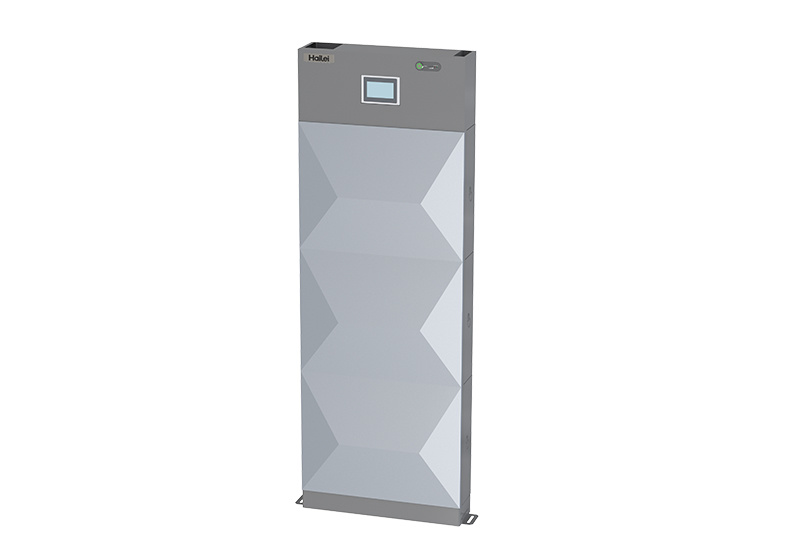

Residential energy storage system,modular battery, suitable for residential energy storage, one set provides electricity for the whole house.
Home Energy Storage Battery is a revolutionary product that brings numerous benefits to your home. In the energy sector, it acts as a safeguard,
5KW output power, supporting 4 clusters in parallel, household micro-grid, touching LCD, and supporting screen selection protocols.

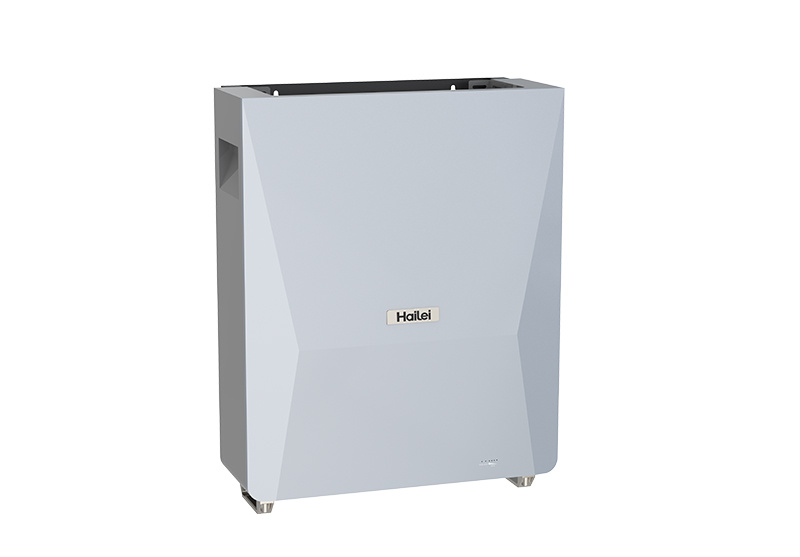

5kWh wall-mounted LiFePO4 battery, designed for residential energy storage, stylish design and Supports wall-mounted installation.
